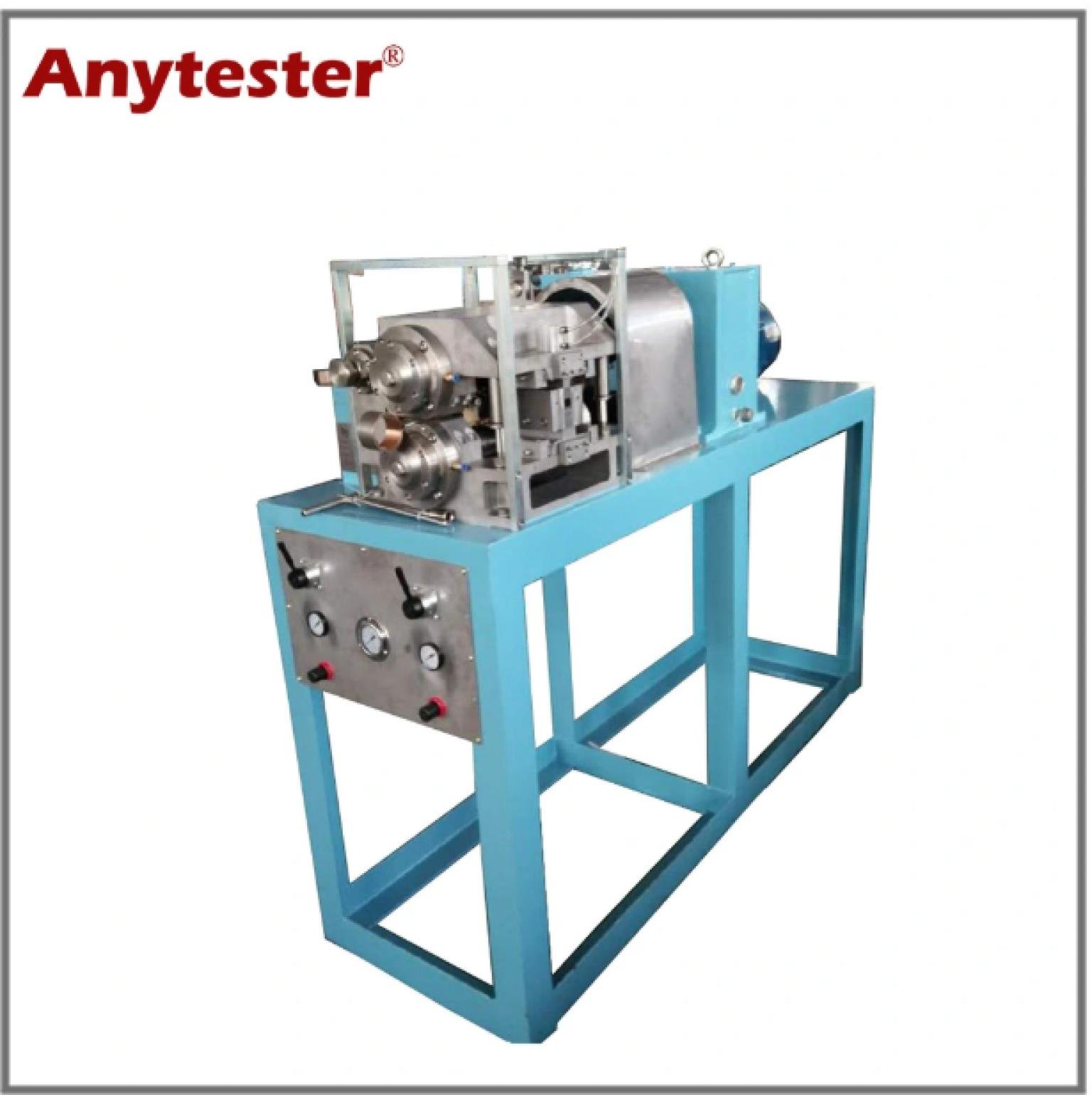

AT236 Rocker Crimper is a main equipment in the production line specialized in manufacturing differential polyester staple fibers. For cotton-type fibers, the machine continuously feeds polyester tows in even thickness and tension and squeezes them to be of regular crimp through its main pressing and back pressing. In this way, the center line of fibers is not straight any more, but curved; and fibers will have a better cohesive force to meet the requirement of spinning in the later spinning process. Crimping subassembly consists of crimping box, rocker driven device, crimping base, rotary connector, pressure-applying device, gas pressure controlling system, driving box and motor; 2. Single gas cylinder and rocker upward-pressing method; 3. Supporting bearing adopts dual column cylindrical roll bearing with oil hole and oil groove, radial internal clearance between 50~60um;4. Axial force-resistant bearing adopts back-to-back angle contact ball bearing; 5. Stainless steel crimping base and rocker;6. Crimping roll and upper/lower crimping blade made of 4Cr13; 7. Whole machine with paint for corrosion-resistance. Technical Specification Model: YF150-30TypeStuffer-box, squeezing-typeOperating typeRight-hand When operator faces the fiber tows, fiber tows moves from left to right. Fineness of fiber tow5~10×104dtexMax. machine speed200m/min(process speed 150m/min)Crimping roll size¢150×30mm Material: of crimping roll and blade4Cr13 Hardness: of crimping roll and blade≥HRC48~55Surface coarseness of crimping roll and blade≤0.8Side coarseness of crimping roll and blade≤0.8Surface temperature of crimping wheel≤100℃Main pressing pressure0~0.6MpaBack pressing pressure0~0.6Mpa Motor: power11KWReducer speed ratio1:4Steam pressure0.3Mpa Net weight: 600kg
